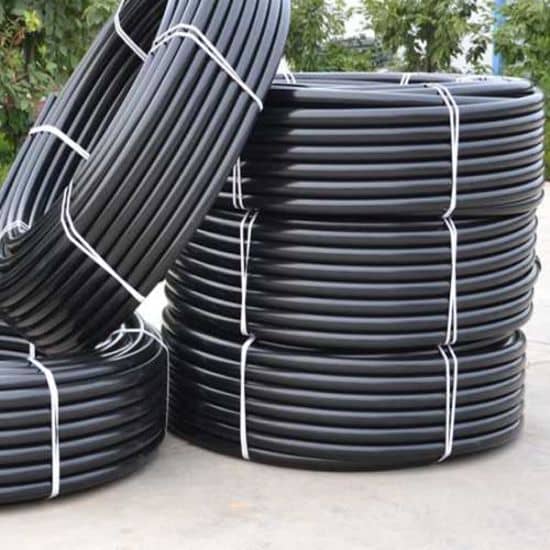

HDPE PIPE ROLL
| HDPE Pipe as per DIN 8074 | ||||||||
| PN - 6 | PN - 10 | PN - 16 | PN - 20 | |||||
| Outer Diameter | Wall Thick | Mass In | Wall Thick | Mass In | Wall Thick | Mass In | Wall Thick | Mass In |
| mm | S (mm) | Kg / m | S (mm) | Kg / m | S (mm) | Kg / (m) | S (mm) | Kg / m |
| 20 | 1.8 | 0.105 | 1.9 | 0.11 | 1.9 | 0.116 | - | - |
| 25 | 1.8 | 0.134 | 2.3 | 0.165 | 2.3 | 0.186 | 3 | 0.22 |
| 32 | 1.9 | 0.183 | 2.7 | 0.255 | 2.9 | 0.286 | 3.6 | 0.34 |
| 40 | 2.3 | 0.28 | 2.7 | 0.336 | 3.7 | 0.44 | 4.5 | 0.53 |
| 50 | 2.9 | 0.433 | 3.3 | 0.495 | 4.6 | 0.69 | 5.6 | 0.83 |
| 63 | 3.6 | 0.68 | 4.2 | 0.81 | 5.8 | 1.07 | 7.1 | 1.32 |
| 75 | 4.3 | 1 | 4.5 | 1.05 | 6.8 | 1.5 | 8.4 | 1.85 |
| 90 | 5.1 | 1.37 | 5.4 | 1.5 | 8.2 | 2.2 | 0.1 | 2.66 |
| 110 | 6.3 | 2.05 | 6.6 | 2.25 | 10 | 3.25 | 12.3 | 3.96 |
| 125 | 7.1 | 2.65 | 7.4 | 2.9 | 11.4 | 4.27 | 14 | 5.12 |
| 140 | 8 | 3.32 | 8.3 | 3.64 | 12.7 | 5.34 | 15.7 | 6.43 |
| 160 | 9.1 | 4.33 | 9.5 | 4.9 | 14.6 | 7 | 17.9 | 8.39 |
| 180 | 10.2 | 5.45 | 10.7 | 6 | 16.4 | 8.83 | 20.1 | 10.6 |
| 200 | 7.2 | 4.6 | 11.9 | 7.39 | 18.2 | 10.9 | 22.4 | 13.12 |
| 225 | 8.2 | 5.83 | 13.4 | 9.38 | 20.5 | 13.79 | 25.2 | 16.6 |
| 250 | 9.1 | 7.2 | 14.8 | 11.48 | 22.7 | 17.03 | 27.9 | 20.43 |
| 280 | 10.1 | 9.03 | 16.6 | 14.43 | 25.4 | 21.32 | 31.3 | 25.66 |
| 315 | 11.4 | 11.42 | 18.7 | 18.27 | 28.6 | 27.04 | 35.2 | 32.47 |
| 355 | 12.9 | 14.53 | 21.1 | 23.26 | 32.2 | 34.27 | 39.7 | 41.27 |
| 400 | 14.5 | 18.42 | 23.7 | 29.4 | 36.3 | 43.53 | 44.7 | 52.36 |
| 450 | 16.3 | 23.31 | 26.7 | 37.26 | 40.9 | 55.17 | 50.3 | 66.28 |
